Blown Film Extrusion

Blown Film Extrusion
The blown film extrusion technique utilizes a film blowing machine, designed with a cylinder and screw rods made from high-grade alloy steel that is nitrided and refined to achieve superior hardness and corrosion resistance.

Notable characteristics of blown film extrusion machinery encompass:
High-quality screw and barrel components
Inverter-controlled machine speed
Automatic temperature control
Single winder for film production
Compatibility with materials such as LDPE, HDPE, and LLDPE
Suitable for creating various types of plastic bags, including refuse bags
Film widths available from 100mm to 1200mm

Blown film machines are capable of producing films ranging from 150mm to 1200mm (5 to 48 inches) in width, allowing customization to fulfill specific client needs. These machines are appropriate for the fabrication of HDPE, LDPE, and recycled films.

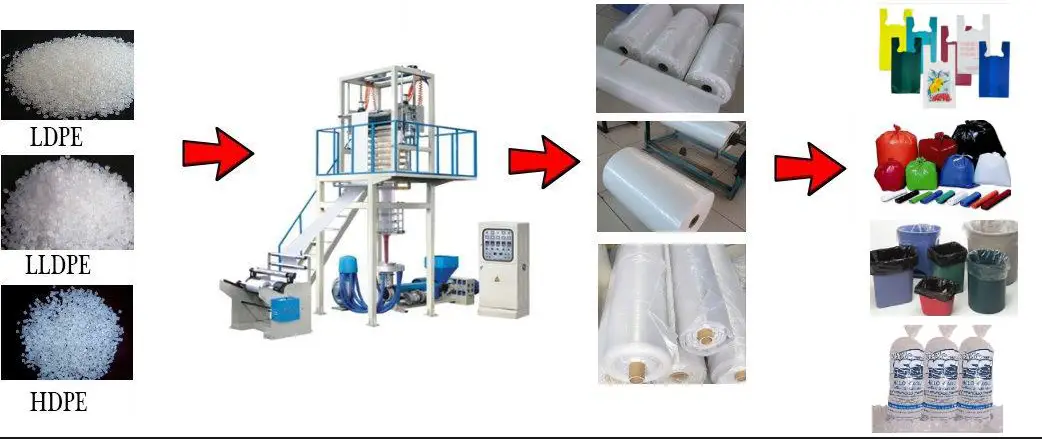

blown film extrusion

Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment

Model	A50	A55	A65	A65-1
Material	HDPE, LDPE, LLDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives material
Film Color	Transparent,Black,Red,White,blue…bag color changed by mastbatch
Usage	Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film
Diameter of screw	φ50	φ55	φ65	φ65
Rcduced diameter of film	100-600 mm	200-800 mm	300-1000 mm	400-1200 mm
One side film Thickness	0.01-0.10 mm
Max.capacity (Kg/h)	35	50	65	80
Ratio of Screw L/D	28:1	28:1	28:1	28:1
Screw material	38CrMoAl	38CrMoAl	38CrMoAl	38CrMoAl
Power of main motor(kw)	7.5-11	11-15	18.5-22	22
Power of Tracion	1.1 kw	1.1 kw	1.5 kw	1.5 kw
Heating Power(kw)	11	13	19	21
Delivery Day	30-45 days	30-45 days	30-45 days	30-45 days
Machine size (m)	4.8×1.9×3.8	5.5×2.1×4.6	6.5×2.3×5.2	6.5×2.5×5.2
Weight(T)	1.5T	2T	2.3T	2.6T
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Material Core Diamater	76mm(3 inch)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Optional Devices	Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
