High Speed Automatic Shopping Bag Machine

High-Speed Automatic Shopping Bag Machine
Features:
The automatic plastic bag making machine is specifically engineered to ensure that the punching holes are positioned accurately, resulting in neatly organized and well-structured bag bottoms. It incorporates an automatic conveyor belt system to efficiently collect punching waste, facilitating easy cleanup.

Spare parts:

1. servo motor 2 set -panasonic from Japan
2. PLC 1 set – panasonic from Japan
3. Hydraulic puncher 2 sets
4. Automatic EPC

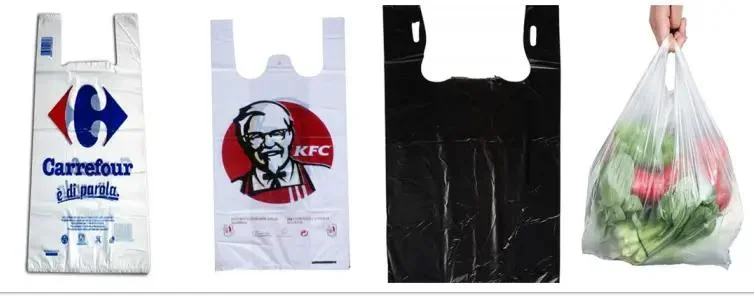

plastic shopping bag

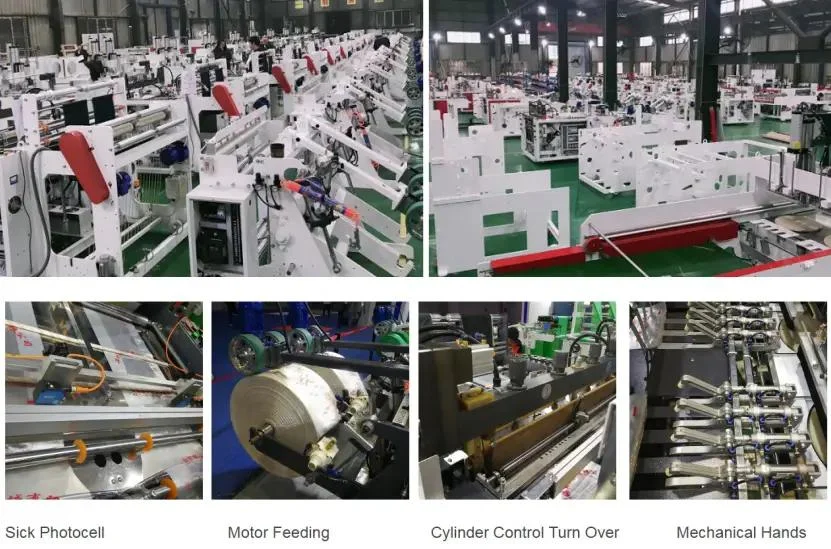

High Speed Automatic Shopping Bag Machine

Main Technical Variables:

Model	KDSS-450X2
Max Bag width	200-400mm
Max Bag length	300-600mm
Line	2 lines
Film thickness	0.01-0.05mm
Machine speed	200-250pc/min
Bag printed	Can produce printed bag and without printed bag
Bag Material	LDPE,HDPE,LLDPE,recycle film
Bag	T-shirt bag,Shopping bag,super market bag,KFC bag
Air pressure	2HP
Total Power	14KW
Weight of machine	2600KG
Machine size	6500x1500x1900mm

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
