3 Layers Blown Film Extrusion
three layers film blowing machine with 3 extruder,suit to produce function film for vacuum bag,FFS bag.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
Three layers blown film extrusion
The implementation of a three-layer blown film extrusion system, featuring three extruders, motors, gearboxes, and inverters, facilitates the production of a three-layer film, such as ABC three-layer co-extrusion, utilizing a plastic film blowing apparatus. This configuration is adept at producing films from HDPE, LLDPE, and LDPE materials. By leveraging multi-layer co-extrusion technology, the equipment significantly improves the durability of the film produced. Utilizing a single main extruder to supply material for both the outer and inner layers reduces the need for additional extruders, resulting in enhanced energy efficiency and lower consumption rates.
Overall, our three-layer blown film machinery is carefully designed to optimize production processes, improve product quality, and ensure cost-effective operations, making it a prudent investment for companies within the film production industry.

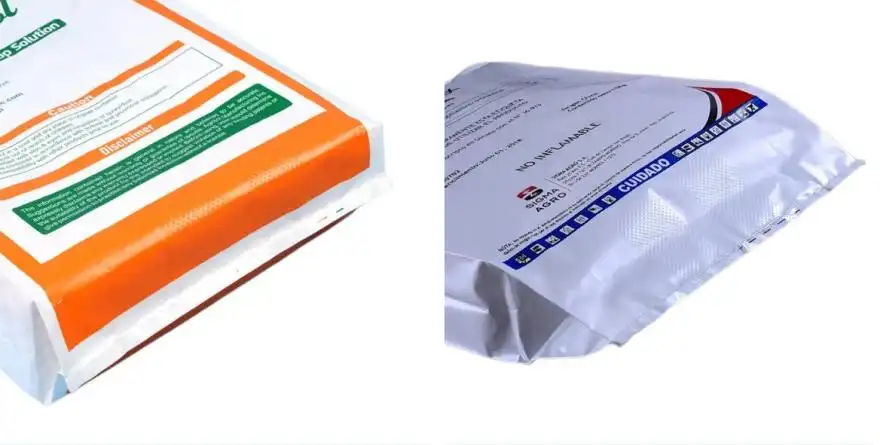

Heavy duty bag

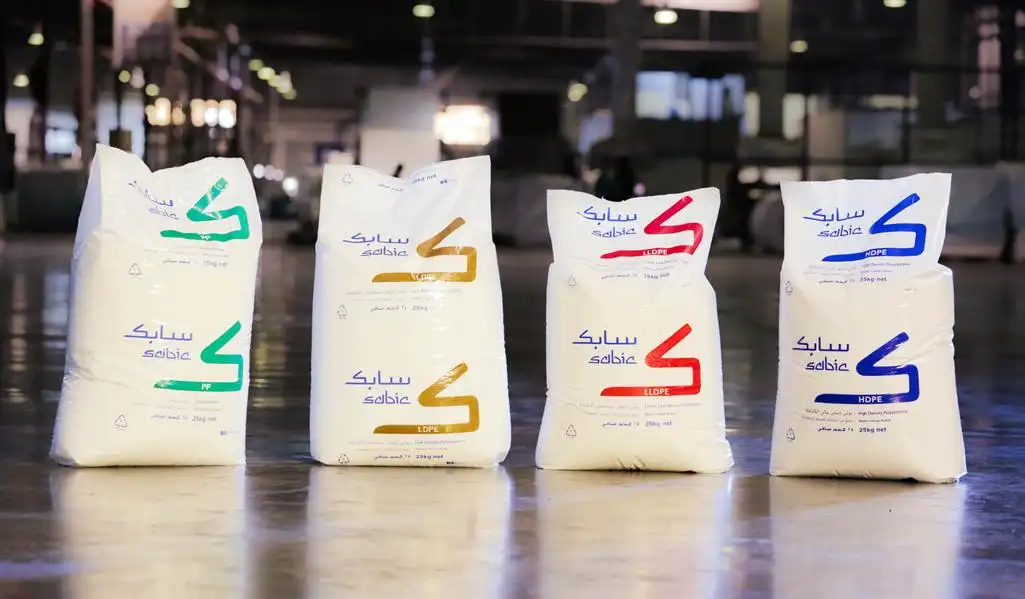

Heavy Duty Plastic Bag Machine
| Technical Variables | ||||
| 型号 | Mode | 3SJ-1100 | SJX3-1350 | SJX3-1700 |
| 螺杆直径 | screw diameter | φ55×2 φ60×1 | φ60×2 φ65×1 | φ65×2 φ70×1 |
| 螺杆长径比 | screw ratio L/D | 28:1 | 28:1 | 28:1 |
| 螺杆转速 | screw speed | 15-120r/min | 15-120r/min | 15-120r/min |
| 主电机功率 | main motor power | 15kw×218.5kwx1 | 18.5kwx222kwx1 | 22kw×230kwx1 |
| 单挤出机产量 | extrusion output(single | 80kg/h | 100kg/h | 140kg/h |
| 模口规格 | ange of die-tip | φ150 φ220 | φ180 φ250 | φ250 φ350 |
| 薄膜厚度单面 | single layer thickness of film | 0.02-0.15mm | 0.02-0.15mm | 0.02-0.15mm |
| 薄膜最大折径 | max layflat width of film | 1000mm | 1200mm | 1500mm |
| 电器总容量 | nstallation capactity | 90kw | 105kw | 120kw |
| 外形尺寸 | overall dimension | 6600×4100×5800 | 6800×4300×6000 | 7000×4800×7500 |
| 机器重量 | weight of machin | 5.5T | 6.2T | 7.5T |
Optional Device:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
